Benelli M4 Optic Mount

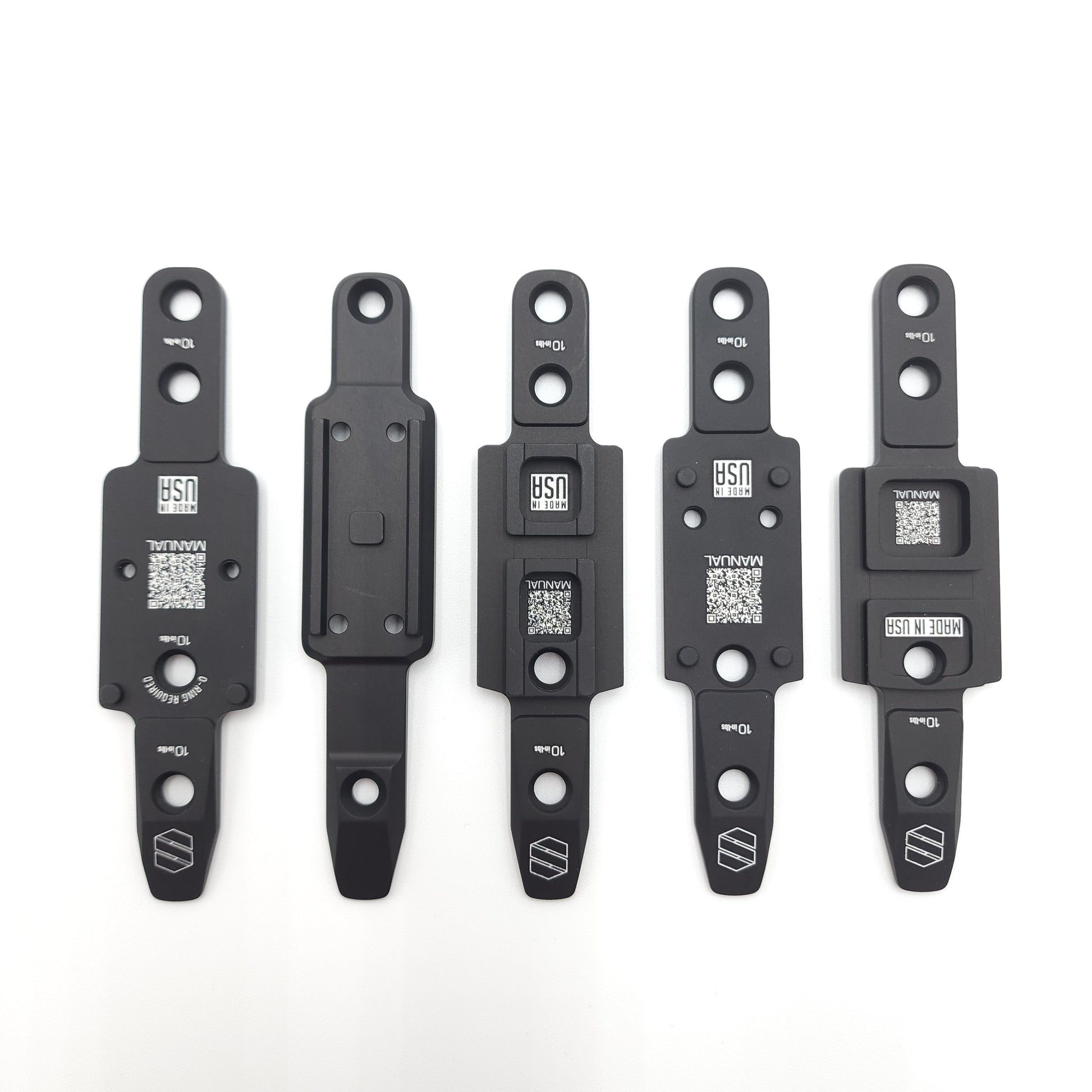

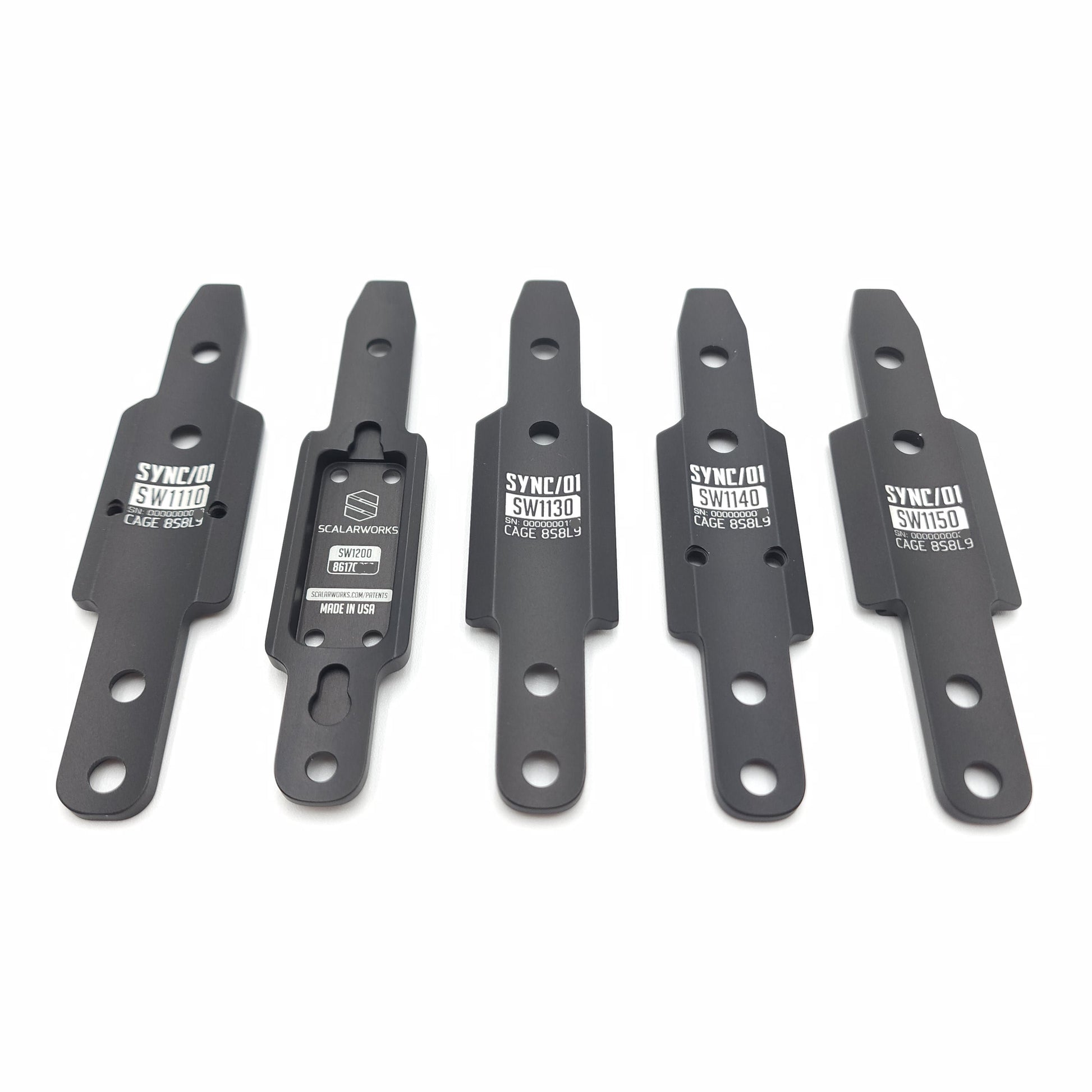

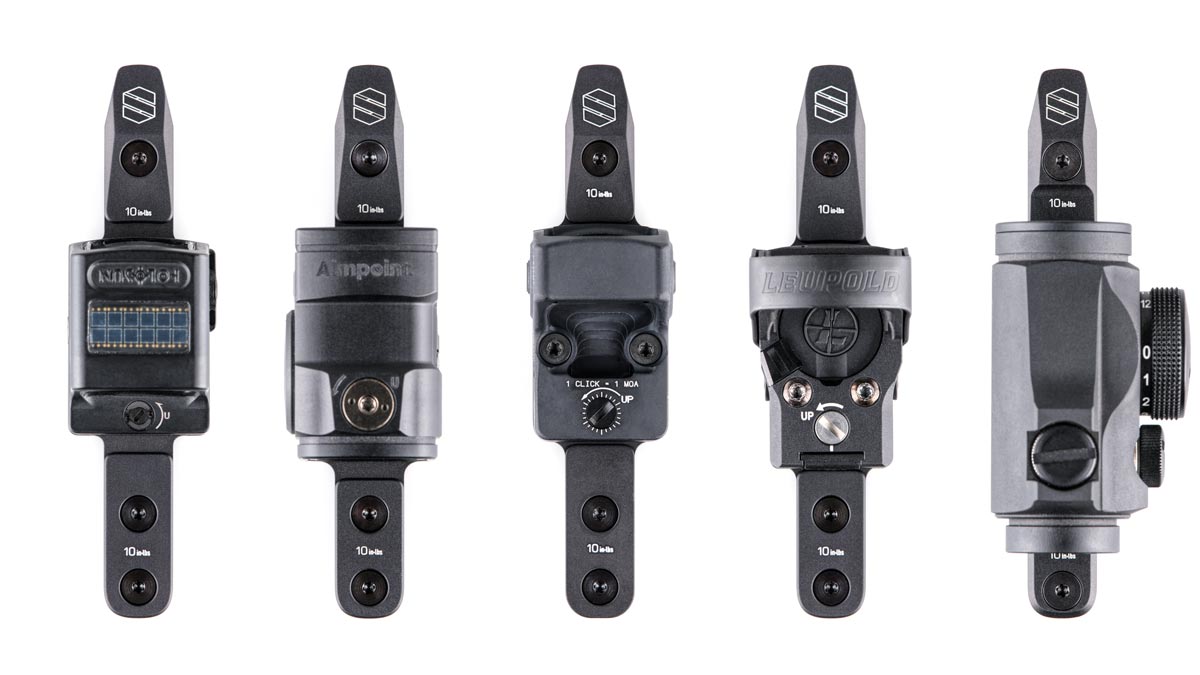

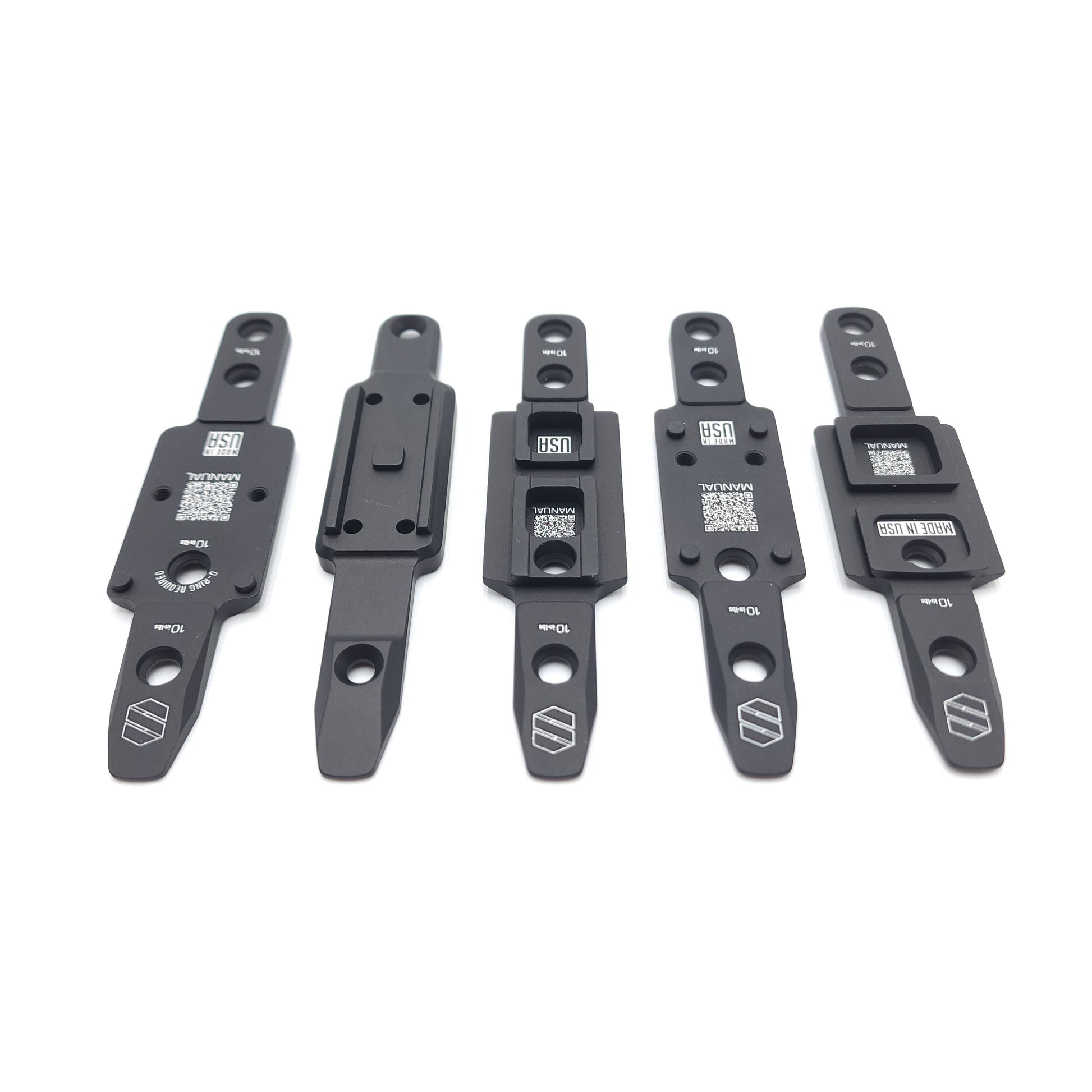

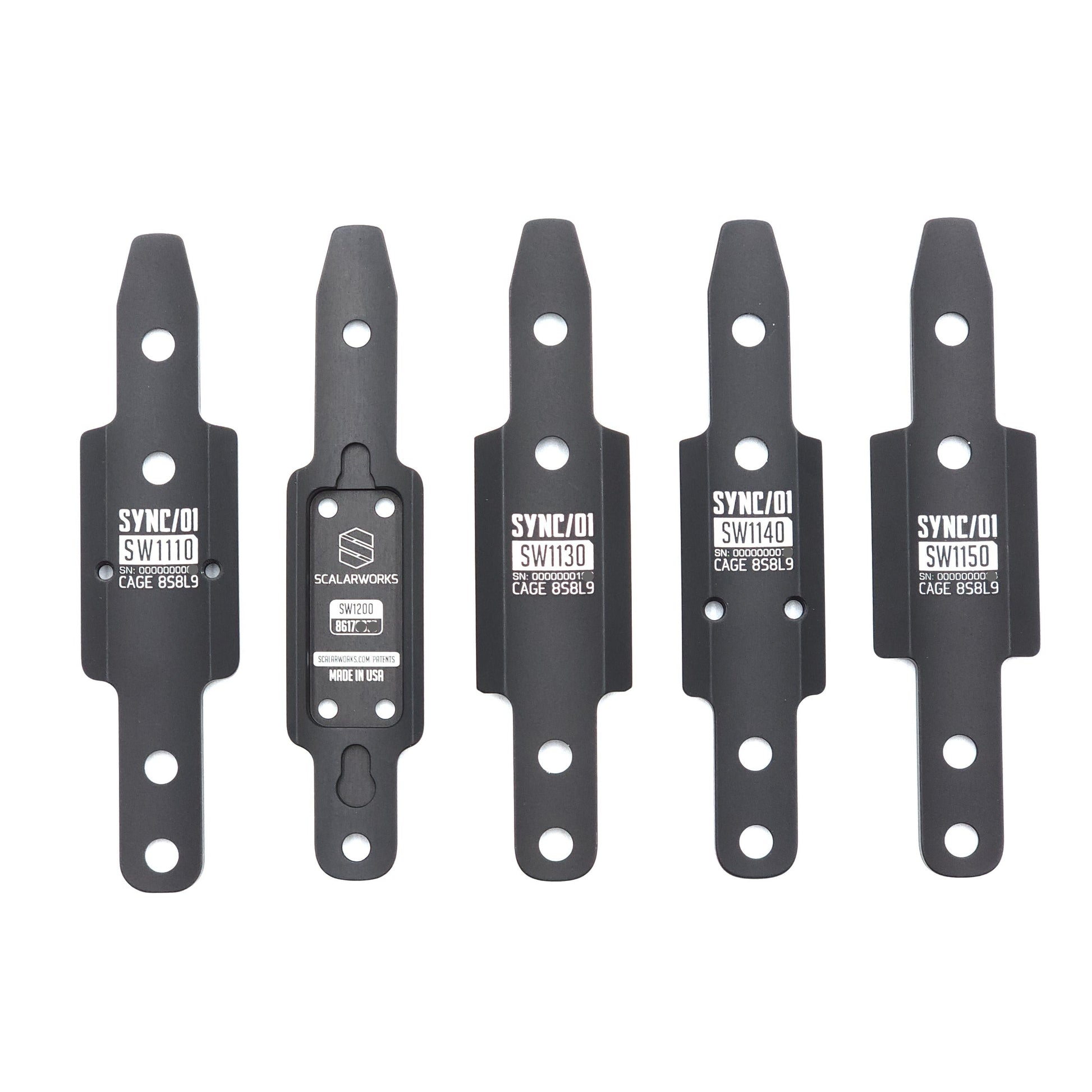

Scalarworks Benelli M4 Optic Mount Profiles:

• Benelli M4 RMR Mount: SW1110 - RMR (Trijicon RMR)
• Benelli M4 Micro Mount: SW1200 - Micro (Aimpoint Micro)
• Benelli M4 ACRO Mount: SW1130 - ACRO (Aimpoint ACRO)
• Benelli M4 DPP Mount: SW1140 - DDP (DeltaPoint Pro)
• Benelli M4 509T Mount: SW1150 - 509T (Holosun 509T)

Benelli M4 Optic Mount Position:

The Scalarworks Sync/01 Benelli M4 optic mounts significantly enhance the effectiveness of your shotgun by preserving the factory ergonomics. Their ultra-slim profile puts the red dot in the perfect position allowing the shooter to maintain a proper cheek weld for quick and accurate shooting. The plate floor is as close to the receiver as possible enabling a 1/10^th co-witness with some optics with the factory iron ghost sights.

Materials and Finish:

The Benelli M4 optic mounts are precision-machined from 7075-T6 aluminum, one of the strongest aluminum alloys available, surpassing the strength of many steel grades. This ensures durability for years of use while keeping weight to a minimum. The Type III anodizing increases surface hardness and corrosion resistance. All screws and hardware are made from hardened 4140 steel, which is flash-nitride treated. These optic mounts are 100% made in the USA.

Machining of the Benelli M4 Optic Mounts:

Scalarworks' Benelli M4 optic mounts feature a patented design with four points of contact for a secure attachment to the receiver. The sleek design, with its aggressive curves and angles, not only looks striking but is also functionally lightweight, as excess material has been removed. Every Scalarworks Benelli M4 optic mount is precision CNC machined to ensure a perfect fit for your M4, every time. Additionally, the watertight design eliminates the need for sealing plates. All mounts are proudly machined in the USA.

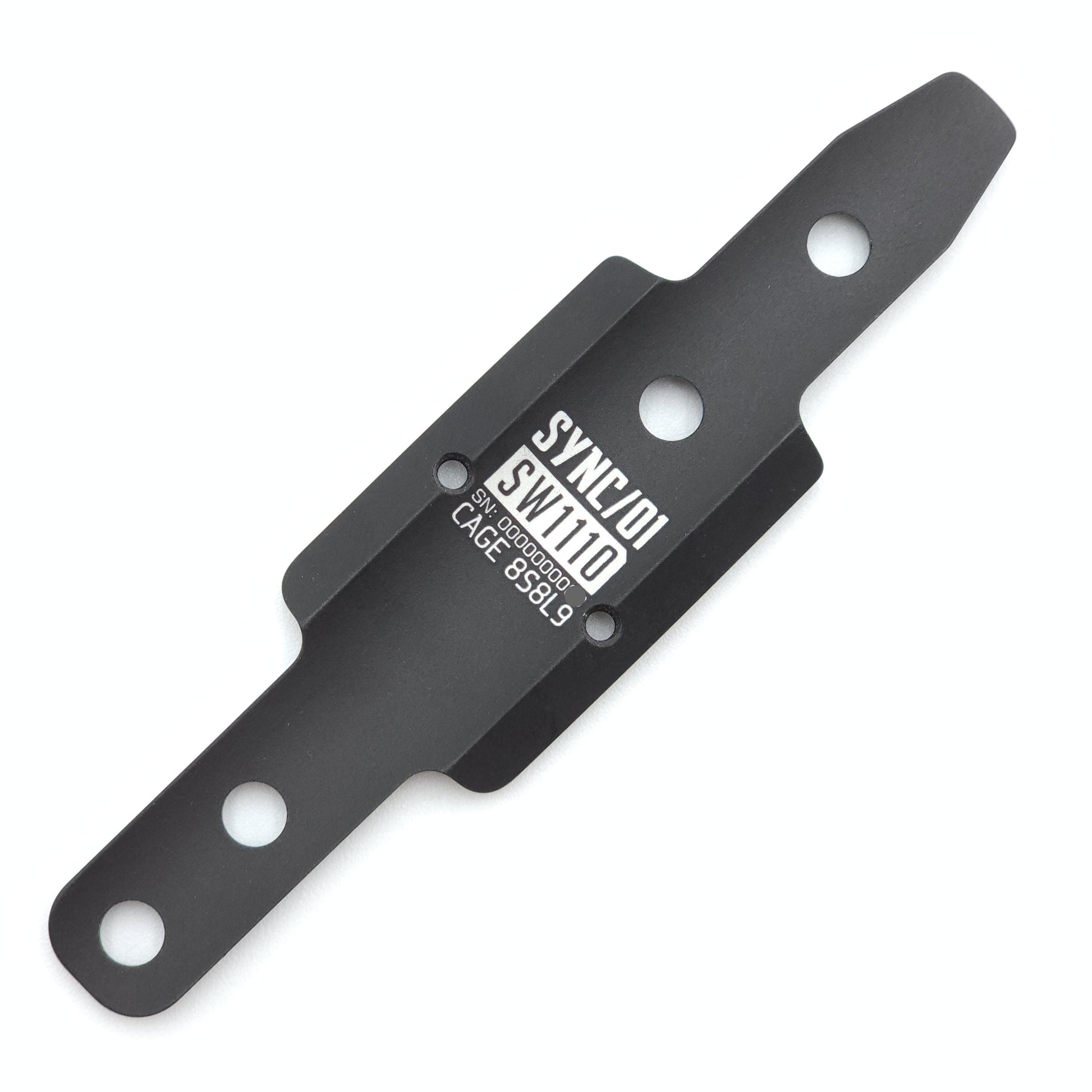

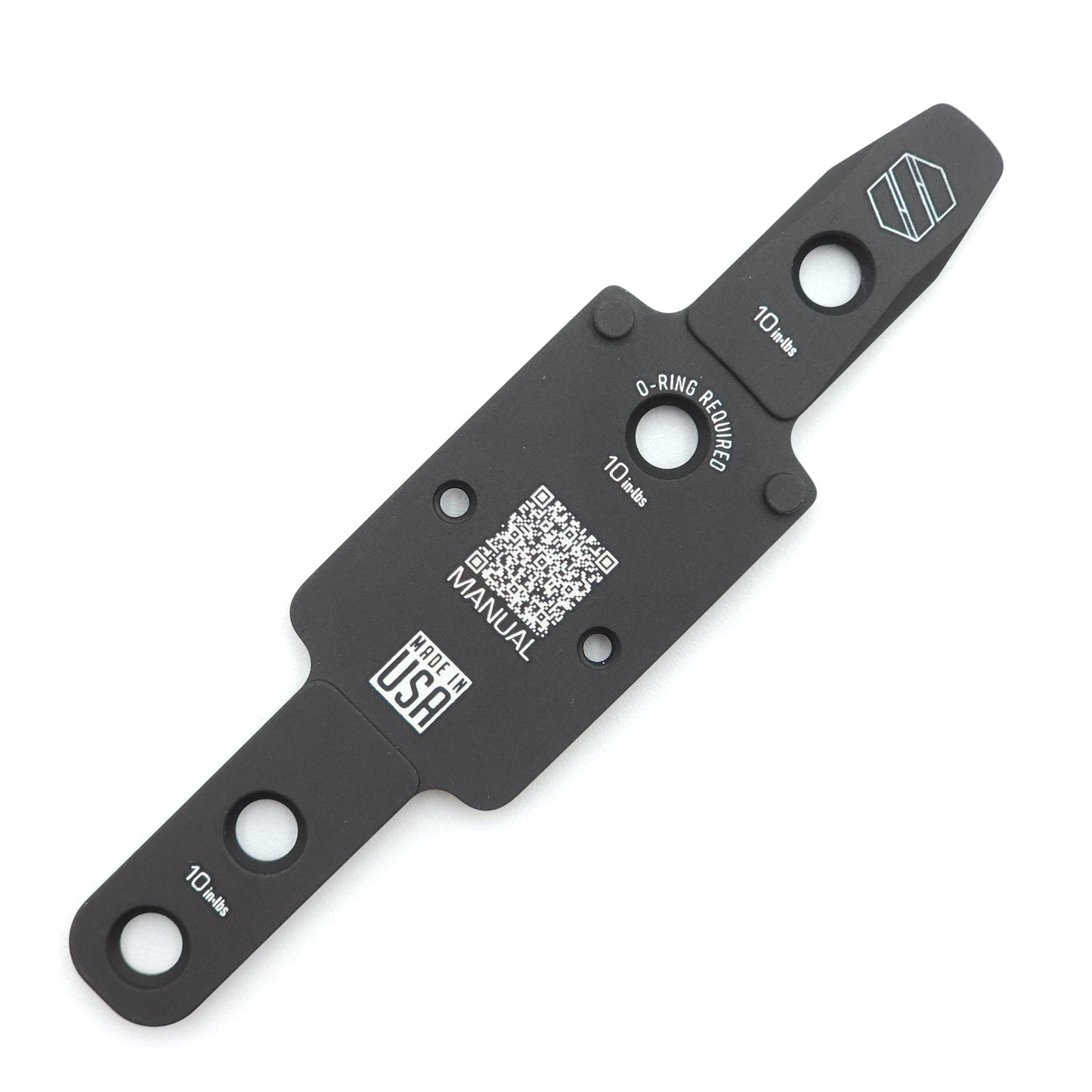

Benelli M4 RMR Mount (SW1110)

• Thickness Between Optic and Receiver: 0.10” (2.55mm)
• Center height over receiver: 0.54” (13.7mm)
• Co-witness: Lower-Tenth
• Weight: 0.69oz (19.7g)
• Also Compatible with: M2 Tactical, M3, M4, M1014, Vinci Tactical, Super Vinci, Super Black Eagle II, Super Black Eagle III, Stoeger M3000
• Trijicon Reflex Optics: RM01, RM02, RM03, RM04, RM05, RM06, RM07, RM08, RM09, SRO1, SRO2, SRO3
• Holosun Reflex Optics: 407C, 507C, 508
• Note: some optics may not co-witness with the iron sights.

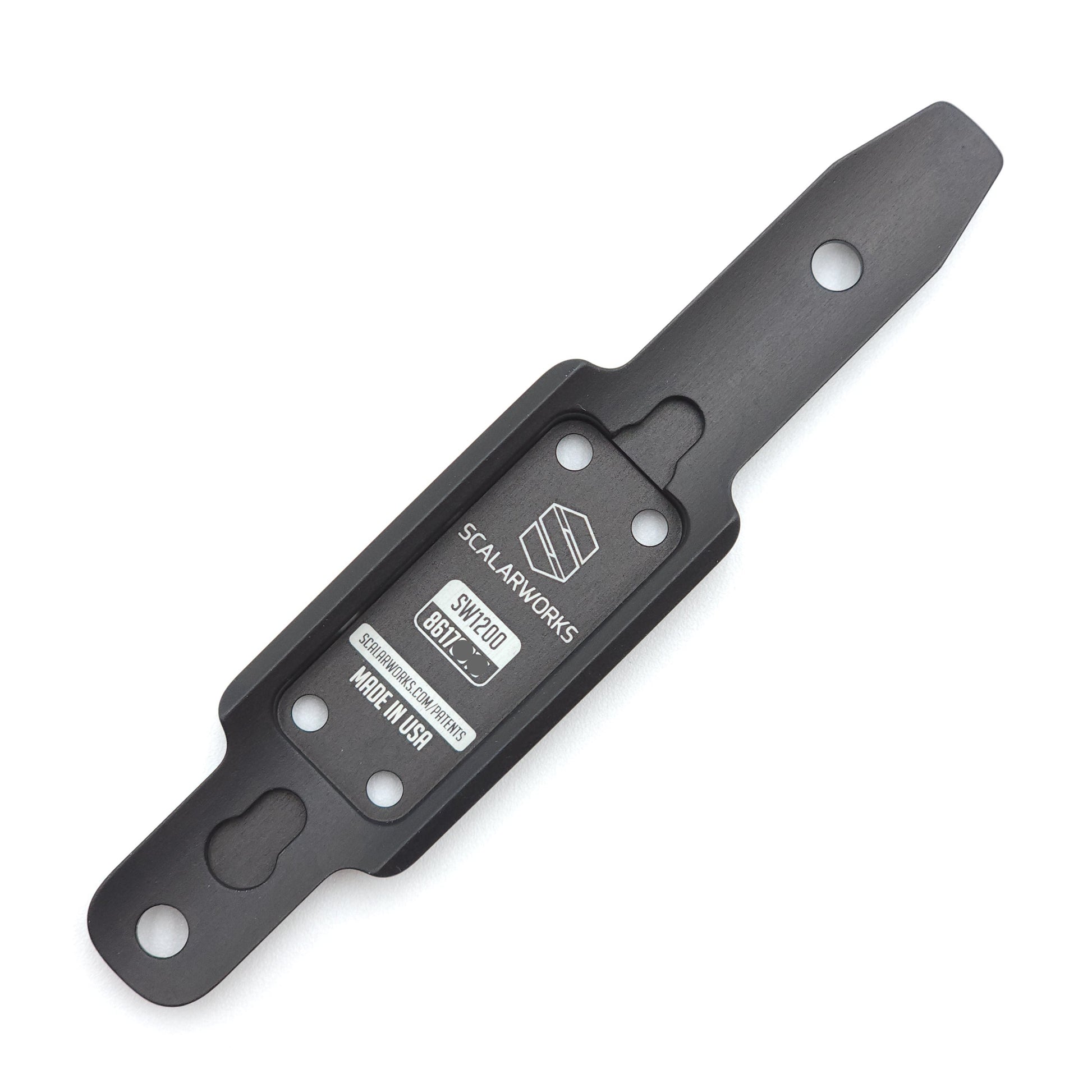

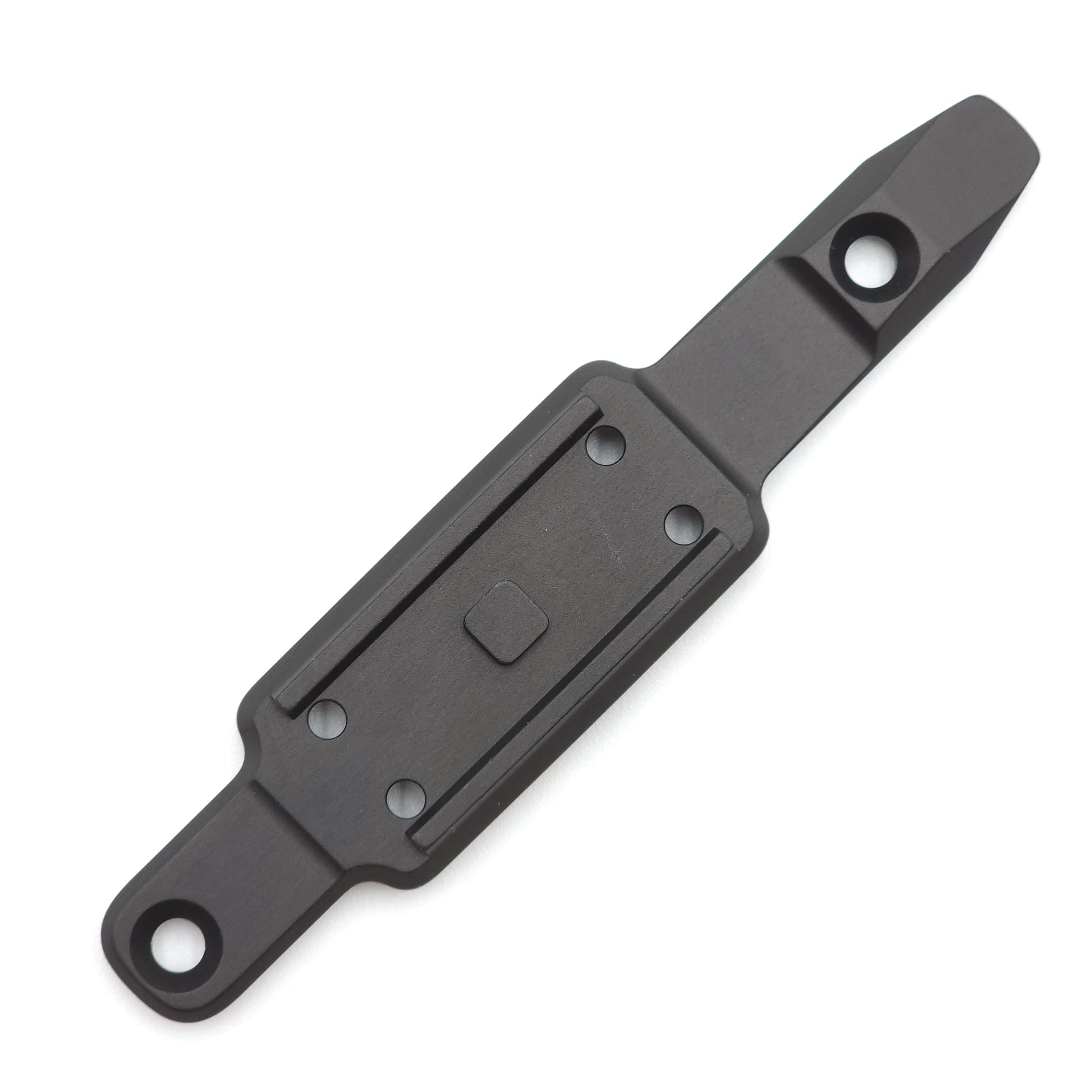

Benelli M4 Micro Mount (SW1200)

• Thickness: 0.155” (3.84mm)
• Center height over receiver: 0.54” (13.7mm)
• Co-witness: Lower-Eighth
• Weight: 0.60oz (17.1g)
• Also Compatible with: M2 Tactical, M3, M4, M1014, Vinci Tactical, Super Vinci, Super Black Eagle II, Super Black Eagle III, Stoeger M3000
• Aimpoint Optics: Micro T-2, H-2, T-1, H-1
• Holosun Optics: 403, 503, 515, 530
• Other Optics: Advanced Micro Dot, Microdot, ROMEO4 (H/S/T), ROMEO5, CROSSFIRE®, SPARC® II, SPARC® SOLAR
• Note: some optics may not co-witness with the iron sights.

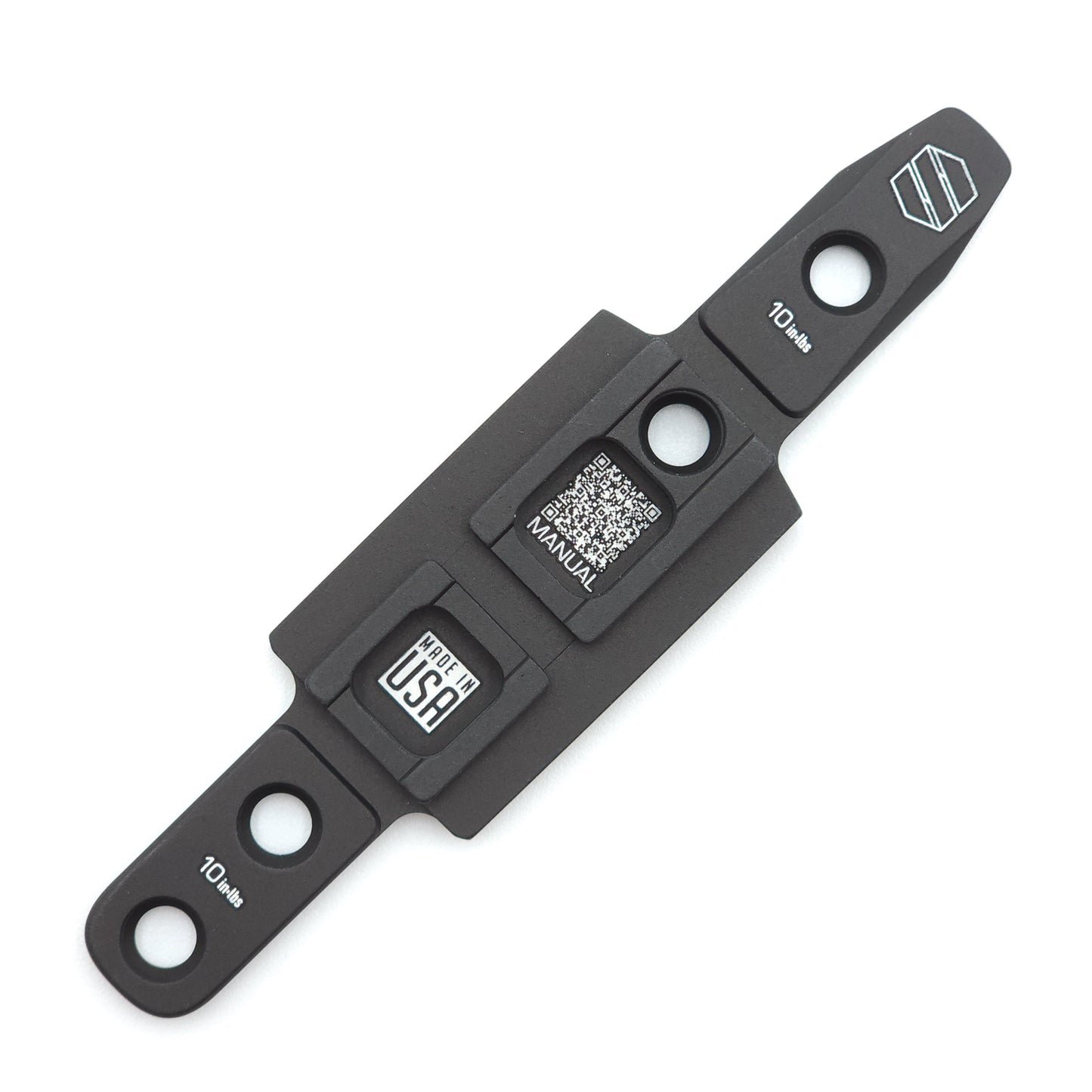

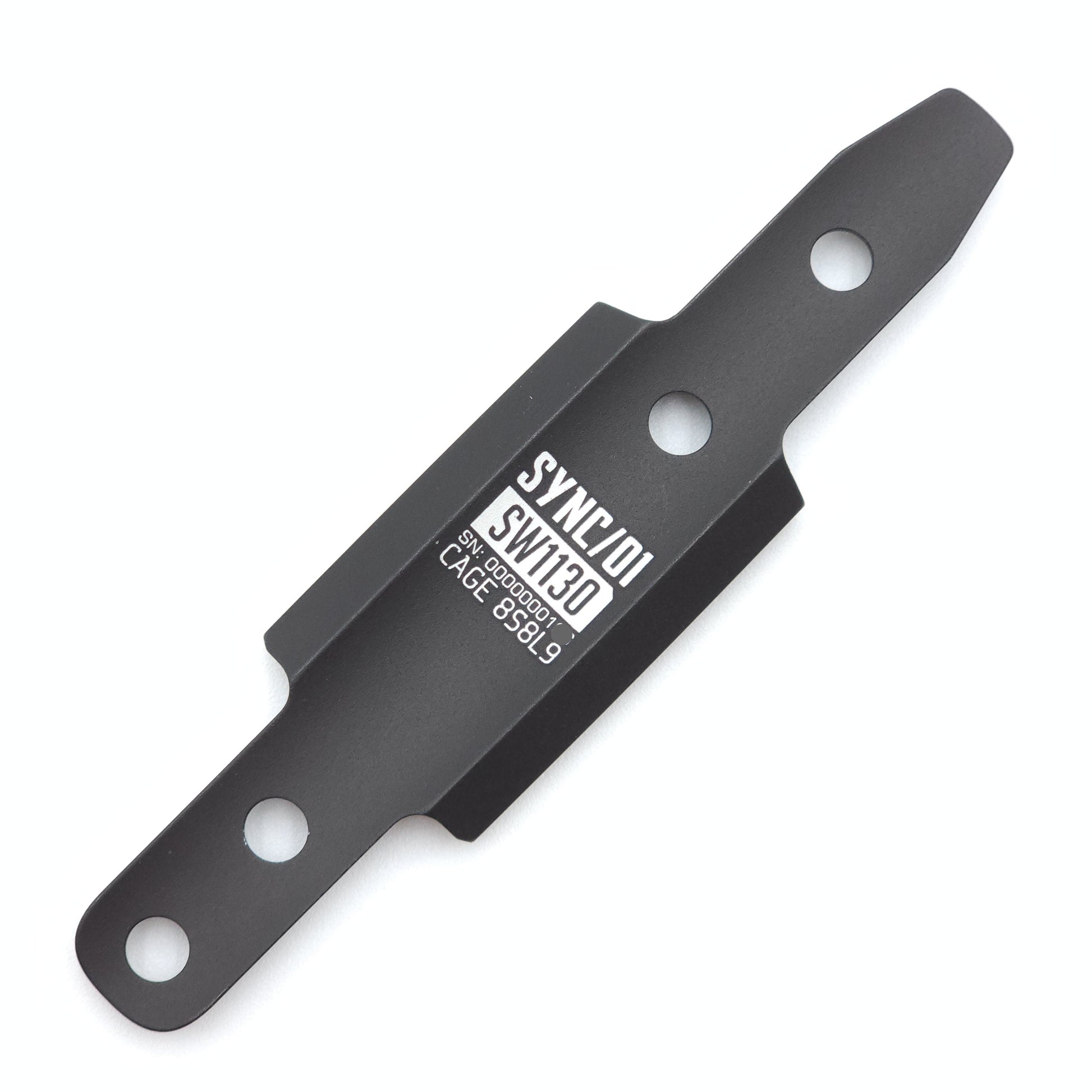

Benelli M4 ACRO Mount (SW1130)

• Thickness: 0.15” (3.9mm)
• Co-witness: Lower-Tenth
• Weight: 0.78oz (22g)
• Also Compatible with: M2 Tactical, M3, M4, M1014, Vinci Tactical, Super Vinci, Super Black Eagle II, Super Black Eagle III, Stoeger M3000
• Aimpoint Reflex Optics: ACRO P-1, ACRO P-2
• Steiner Reflex Optics: MPS
• Note: some optics may not co-witness with the iron sights.

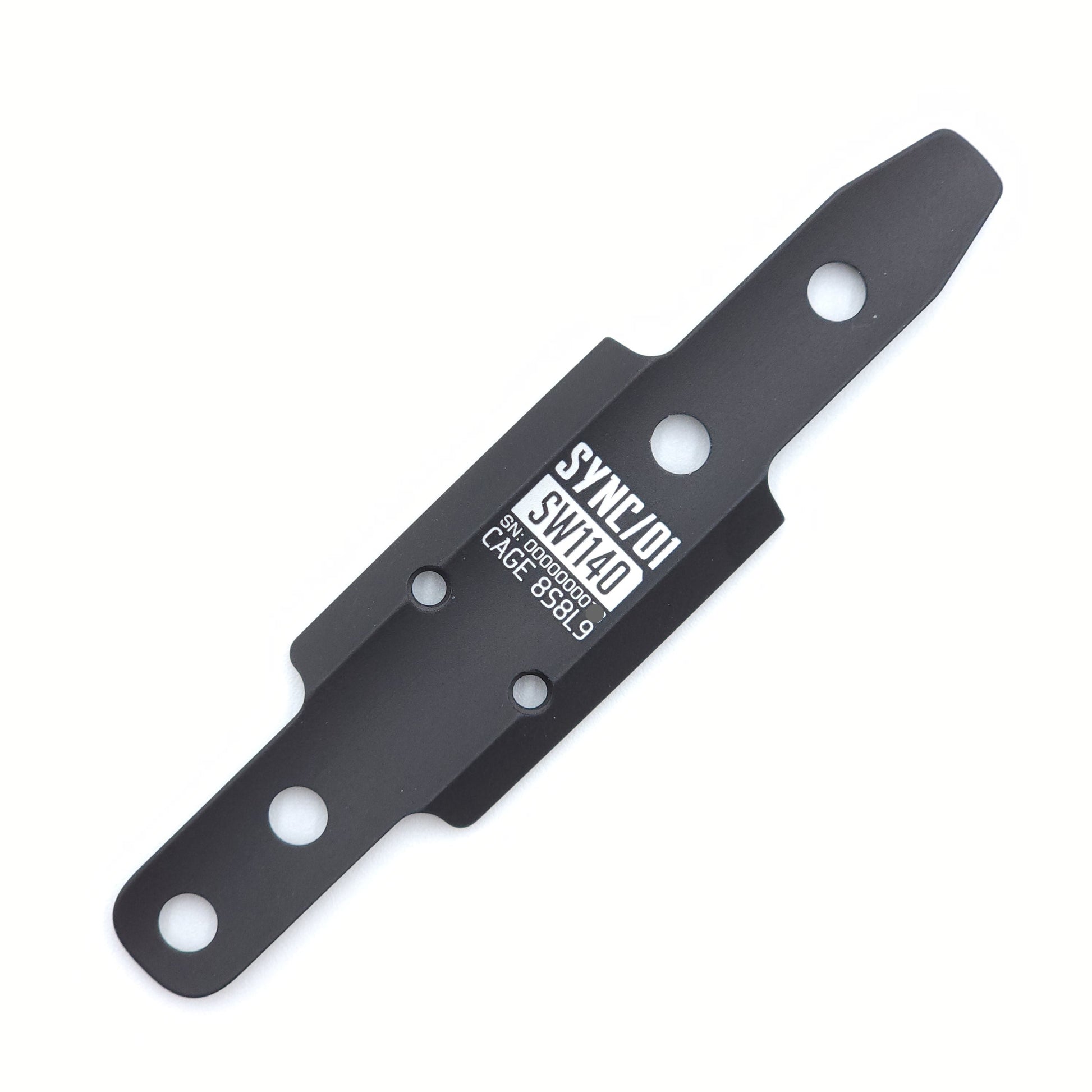

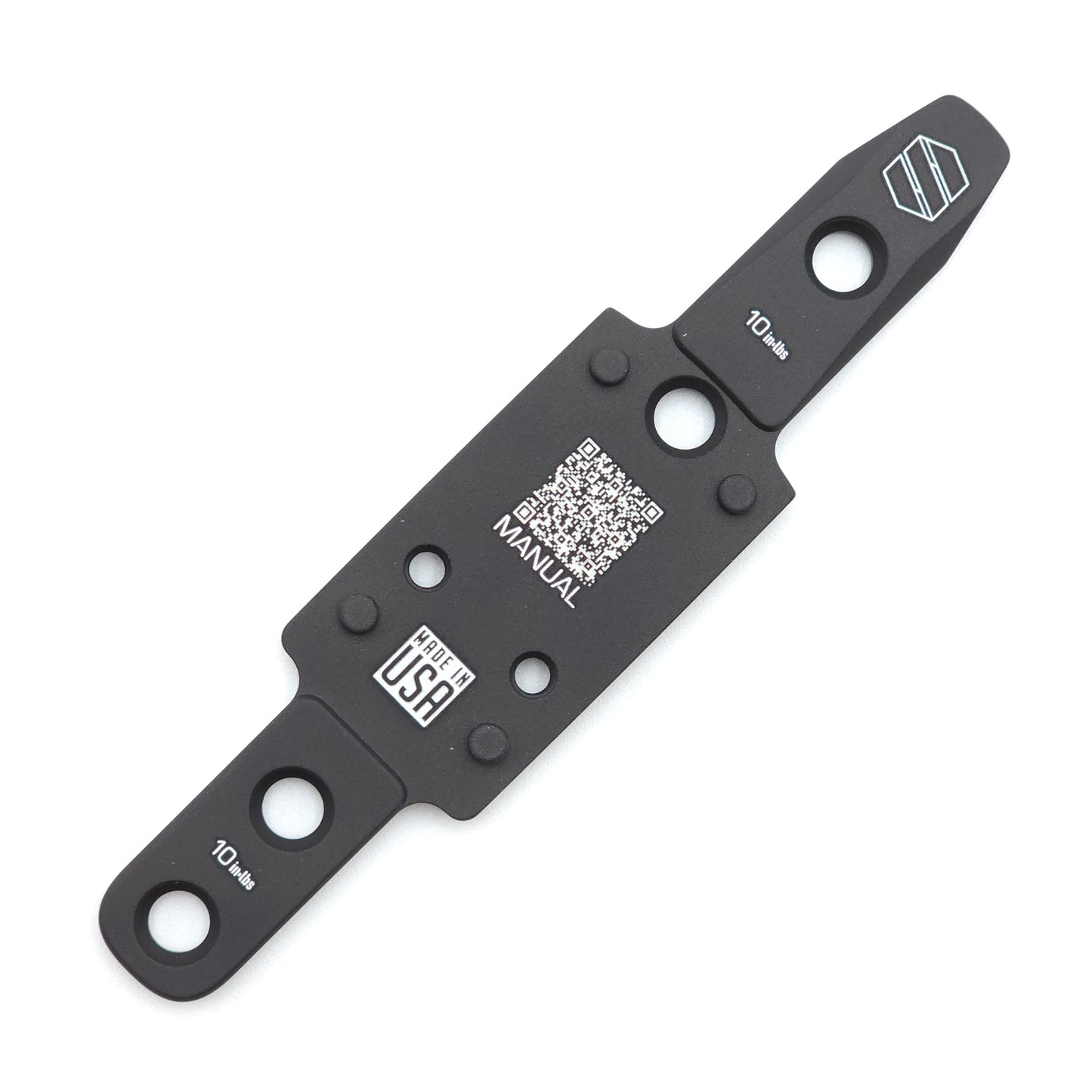

Benelli M4 DPP Mount (SW1140)

• Thickness Between Optic and Receiver: 0.1” (2.55mm)
• Co-witness: does not co-witness
• Weight: 0.62oz (17.6g)
• Also Compatible with: M2 Tactical, M3, M4, M1014, Vinci Tactical, Super Vinci, Super Black Eagle II, Super Black Eagle III, Stoeger M3000
• Reflex Optics: Leupold DeltaPoint Pro
• EOTECH: EFLX

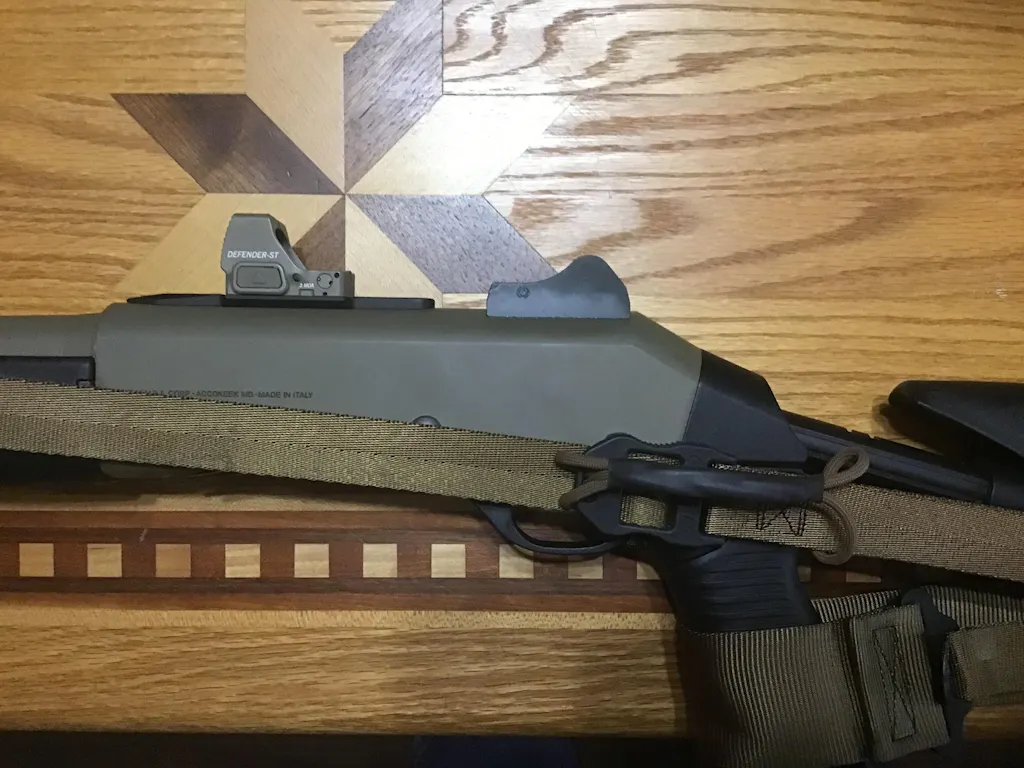

• Vortex: Defender-ST, Defender-XL

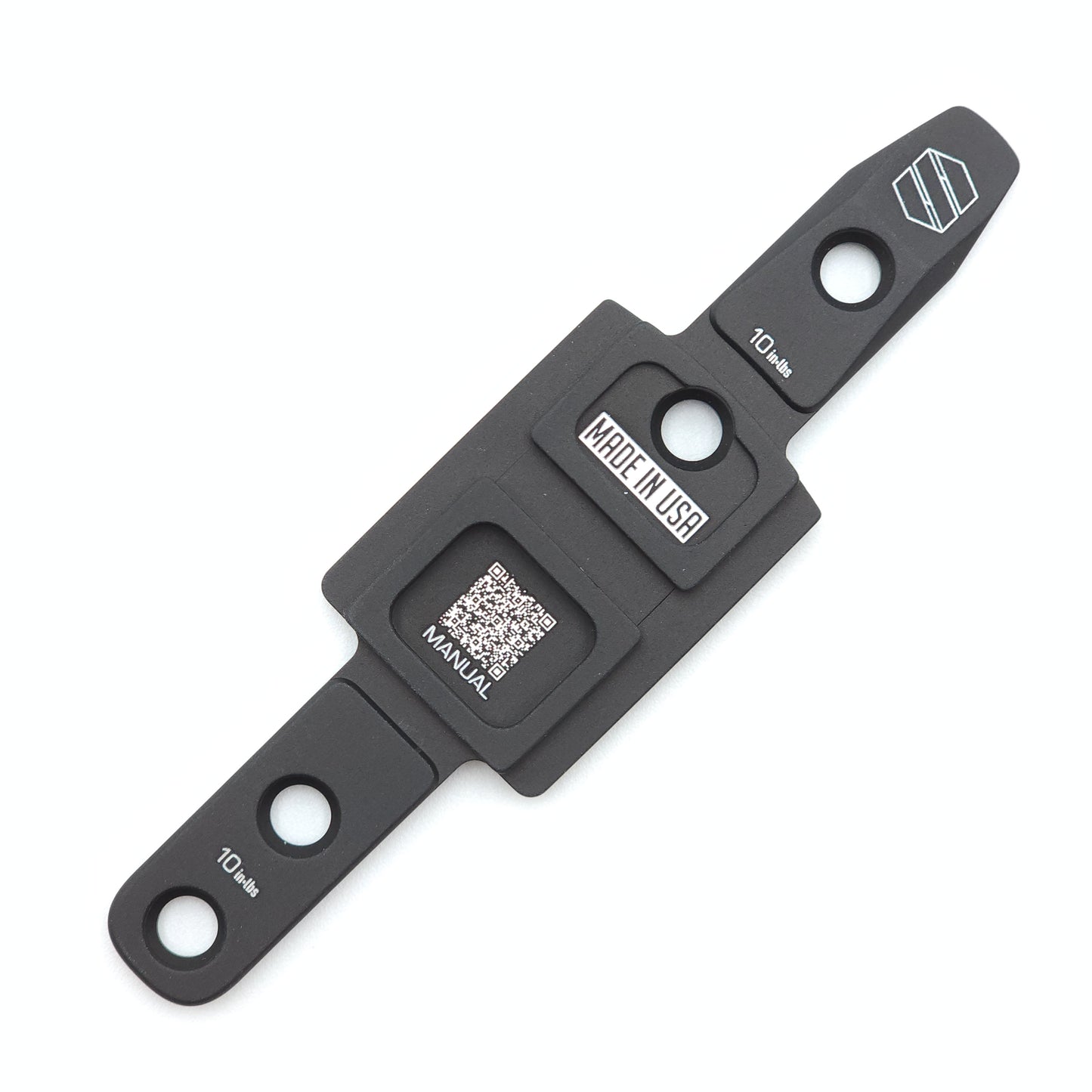

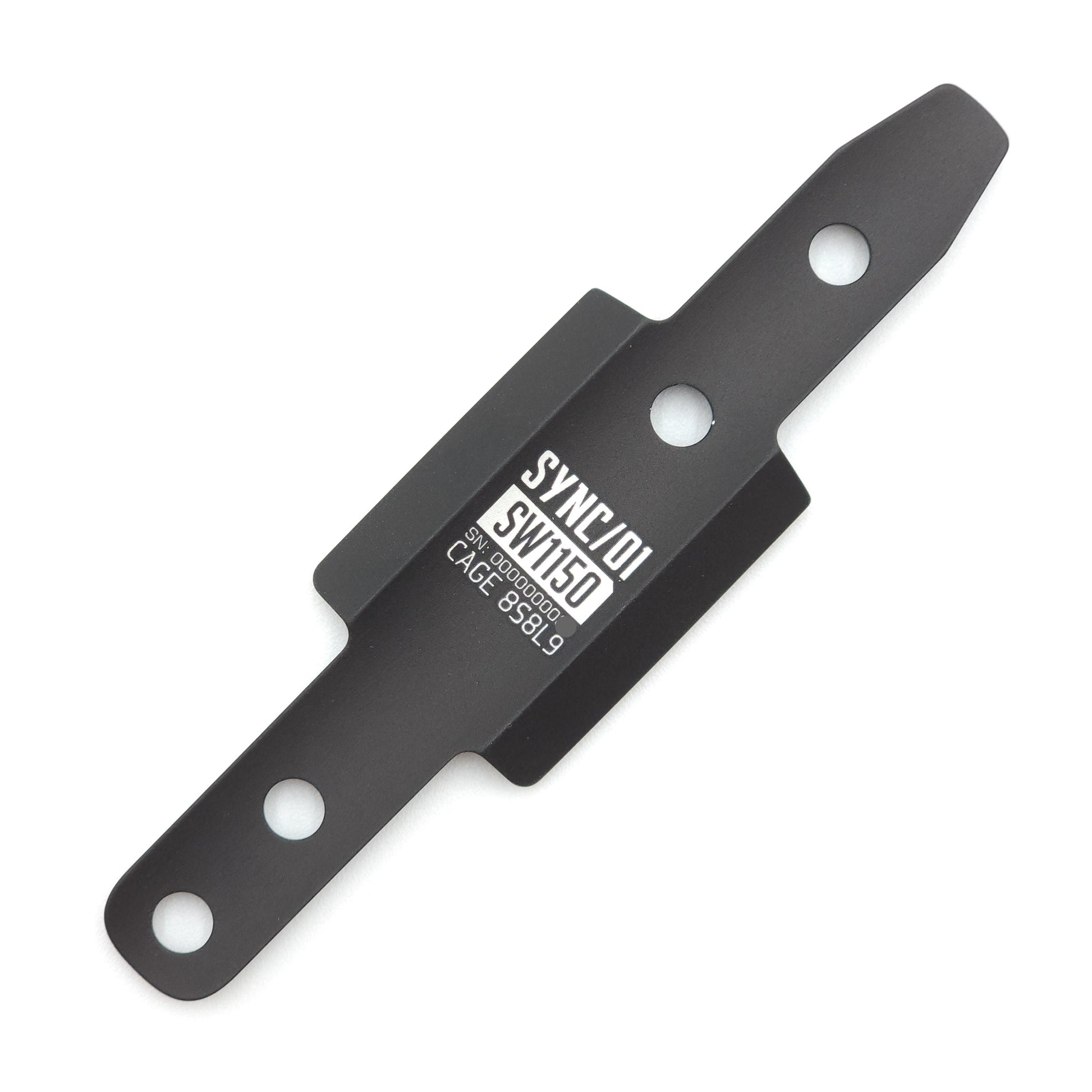

Benelli M4 509T Mount (SW1150)

• Thickness: 0.09” (2.29mm)
• Co-witness: does not co-witness
• Weight: 0.68oz (19.3g)
• Also Compatible with: M2 Tactical, M3, M4, M1014, Vinci Tactical, Super Vinci, Super Black Eagle II, Super Black Eagle III, Stoeger M3000
• Holosun Reflex Optics: HE509T-RD X2, HE509T-GR X2
