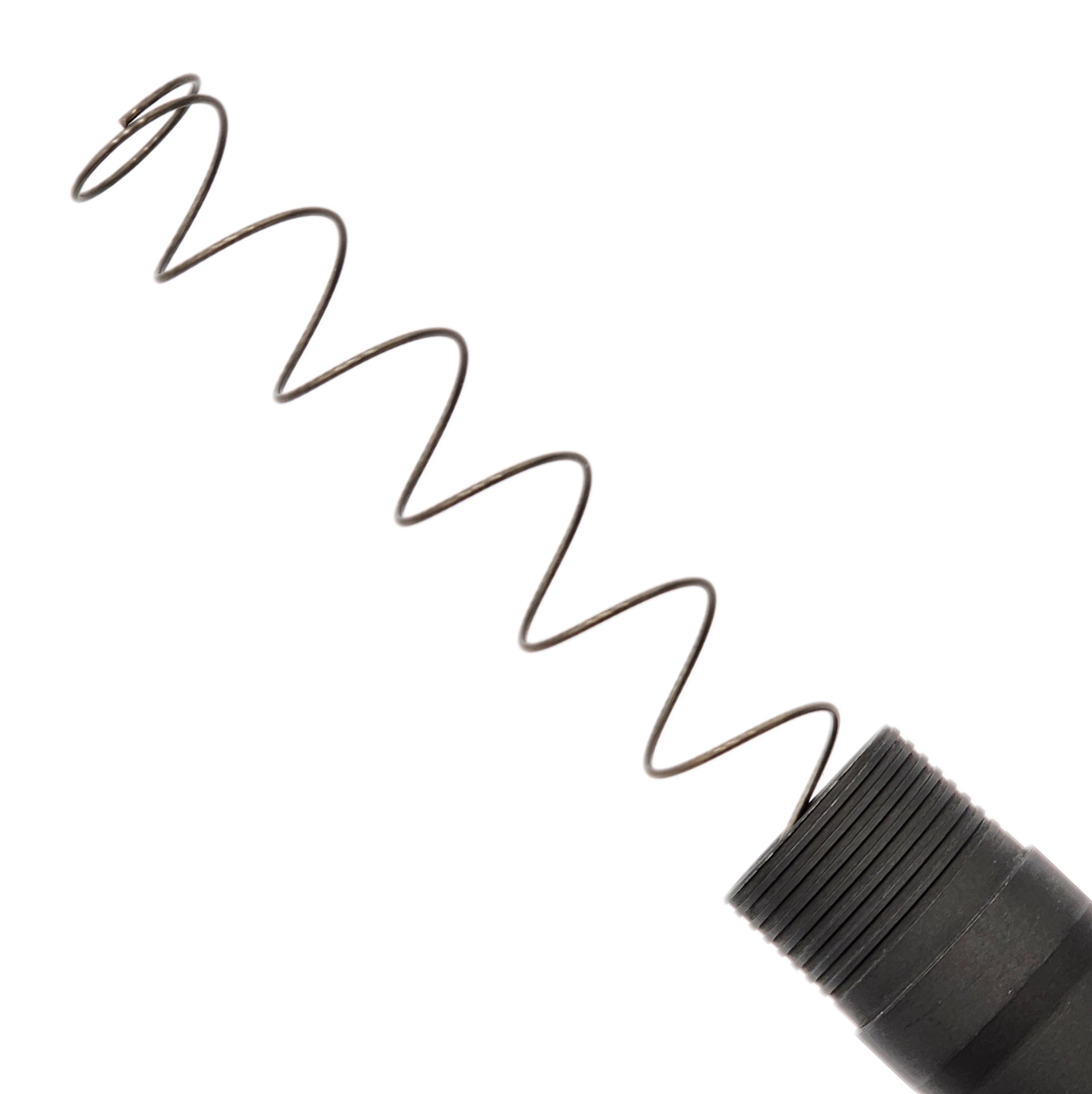

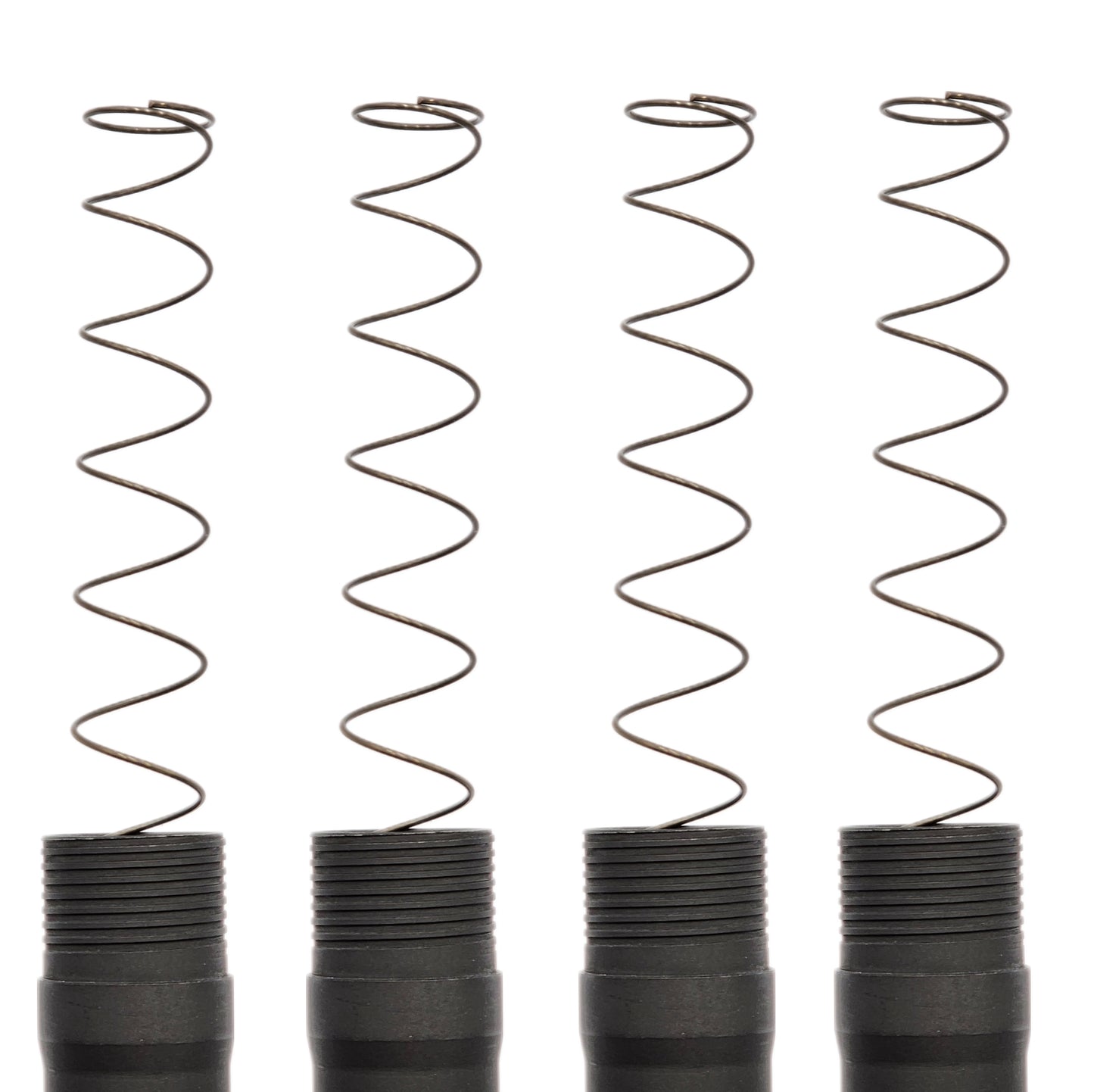

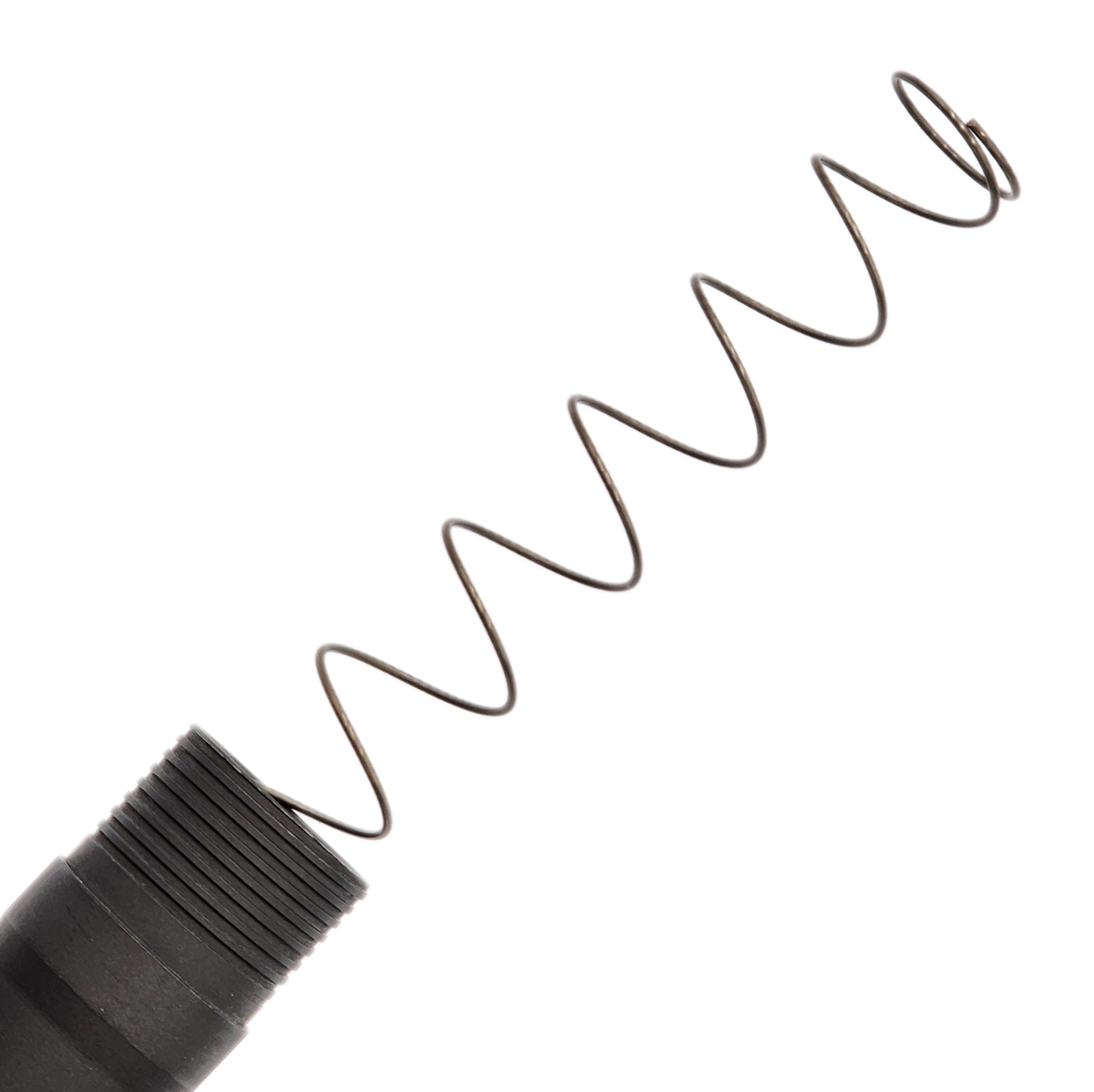

Benelli M4 Wolff Magazine Spring

The Wolff Benelli M4 Magazine Spring:

The Benelli M4 Wolff Spring is custom designed and manufactured to our specifications specifically for use with 7-round capacity magazine tubes such as the Benelli M4 extension tubes. The purpose of these increased power magazine springs is to improve the reliability of your shotgun, while also increasing room in the magazine tube compared to the OEM spring.

Note: these springs will also work in 5-round magazine tubes but may be difficult to install due to the increased power.

Reliability of the Wolff Magazine Spring:

The OEM spring that comes factory with your Benelli M4 works well when new but tends to take a set quickly and becomes underpowered. The Wolff magazine springs are designed to be slightly overpowered when new, but just right once they take a set.

Factory Benelli M4 Magazine Spring Problems:

Underpowered springs don’t eject the shell far enough into the loading gate from the magazine tube, and can cause failure to feed. This is especially true with lighter loads and 3” shells. The problem occurs when shell isn’t ejected far enough, and the tip of the shell makes contact with the receiver to were the loading gate gets jammed.

If you are using your Benelli M4 for home defense or any other high stakes situation, is highly recommended to upgrade your magazine spring. Test the factory spring at the range, and if it works fine, there is no need to upgrade to the Wolff spring.

More Space in Your Magazine Tube:

The solid length (length of spring when fully compressed) of the Wolff magazine spring is slightly less than the OEM spring. It has less coils and a larger gap between coils. This may help with getting that 7^th round to fit when using longer crimped shells (defensive loads tend to be slightly longer than target loads).

The Benelli M4 Wolff spring has a solid length of around 2.01”, while the OEM Benelli M4 magazine spring has a solid length of around 2.11”.

Wolff Magazine Spring Manufacturing:

The Benelli M4 Wolff upgraded magazine springs are made from only the highest quality high carbon spring steel for the longest lasting spring possible. The Benelli M4 Wolff Springs have closed and squared ends that seat evenly on the follower to prevent binding. They are 100% made in America by hardworking Americans.

Benelli M4 Wolff Magazine Spring:

Wolff Gun springs is a manufacturer of precision springs for firearms. They use proprietary spring material and processes to provide you with high quality, reliability, and proven performance not found with most other springs. With over 70 years of experience exclusively with firearm springs, you can be assured that when you choose a Wolff Spring, you are choosing the best.

The Benelli M4 Wolff High Powered Magazine Spring is custom designed and manufactured to our specifications for the Benelli M4 shotgun with 7-round magazine tubes. When increasing magazine capacity from 5 rounds to 7 rounds it is highly recommended to upgrade your magazine spring. This spring offers improved power and reliability compared to the OEM spring that comes with your old 5-round magazine tube.
